QYT KT-980 Plus | Dual Band | Quad-standby | 75W | Support CHIRP | with Cable [DISCONTINUED]

　

Functions
• Four-color display
• Time-out timer (TOT)
• Front Panel Switches & Controls
• DTMF / 2 tones / 5 tones
• Input frequency directly through MIC
• FM radio
• 2100Hz / 1750Hz / 1450Hz / 1000Hz
• Large LCD display
• CTCSS & DCS Encode / Decode
• Scan / function
• Offset frequency and offset direction adjustment
• Busy channel lock
• squelch
• Remote alarm
• High / Low power selectable
• Wide (25 kHz) / Narrow (12.5 kHz) bandwidth selective
• Frequency step 2.5 / 5 / 6.25 / 10 / 12.5 / 25 kHz
• High performance car radio transmits and receives far away
• Reset
　

Specifications
Item number: KT-980 PLUS
Frequency Range: VHF:136-174MHz; UHF:400-480MHz
Output Power: 75W(VHF), 55W(UHF)
Number of Channel: 200
Channel Spacing: 25KHz 20K 12.5K
Phase lock step: 2.5KHz,5KHz, 6.25 KHz, 10 KHz ,12.5 KHz, 25 KHz
Working Voltage: 13.8V DC¡À15%
Squelch way: CTCSS/DCS/5Tone/2Tone/DTMF
Dimension(W x H x D): 140(W) x 43(H) x 172(D)mm
Weight: 1.03kg
　

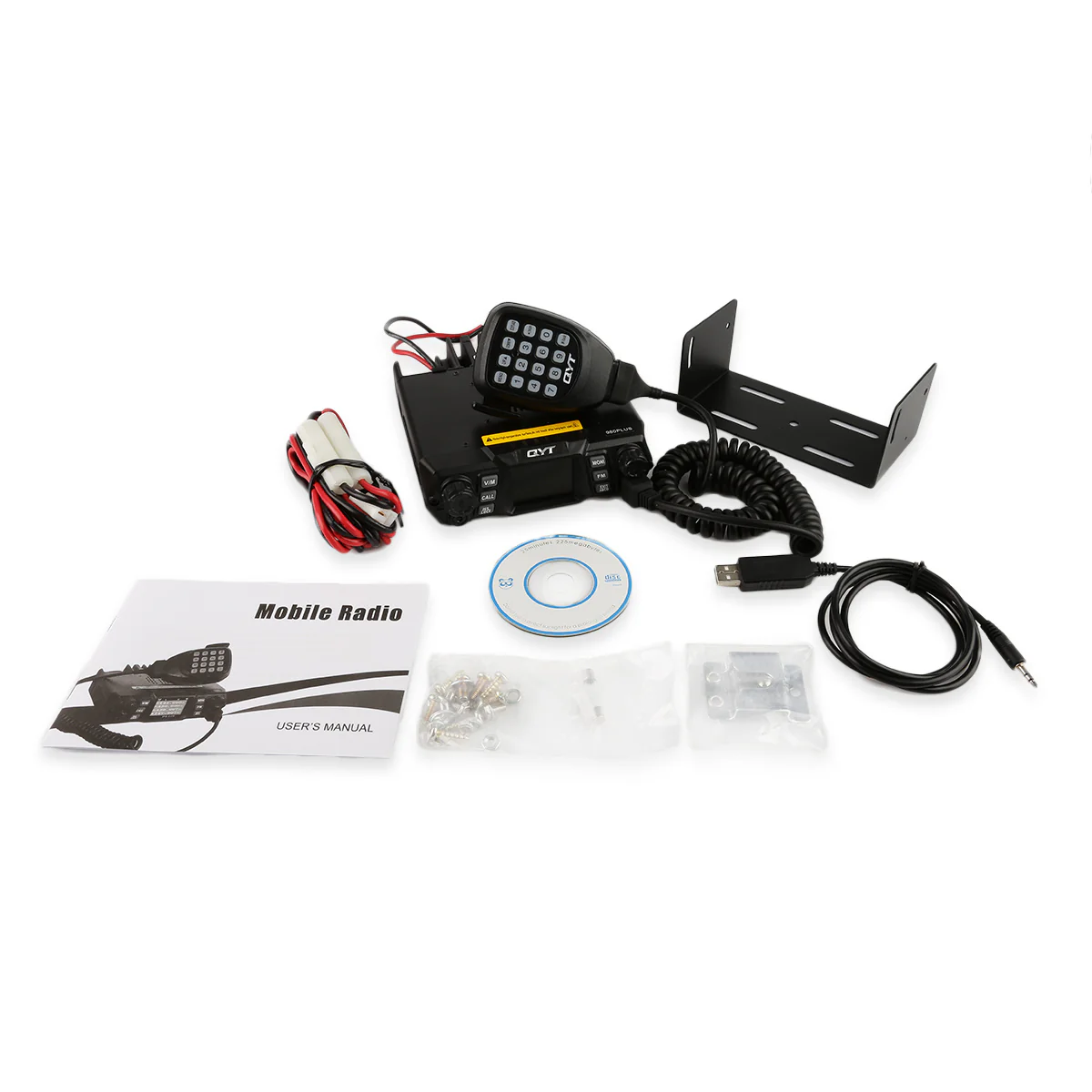

Package Content:
1 x KT-980 Plus Dual Band Mobile
1 x Microphone
1 x Power Cable
1 x Mounting Bracket
1 x Screw Sets
1 x User Manual
1 x Programming Cable (support win10)
