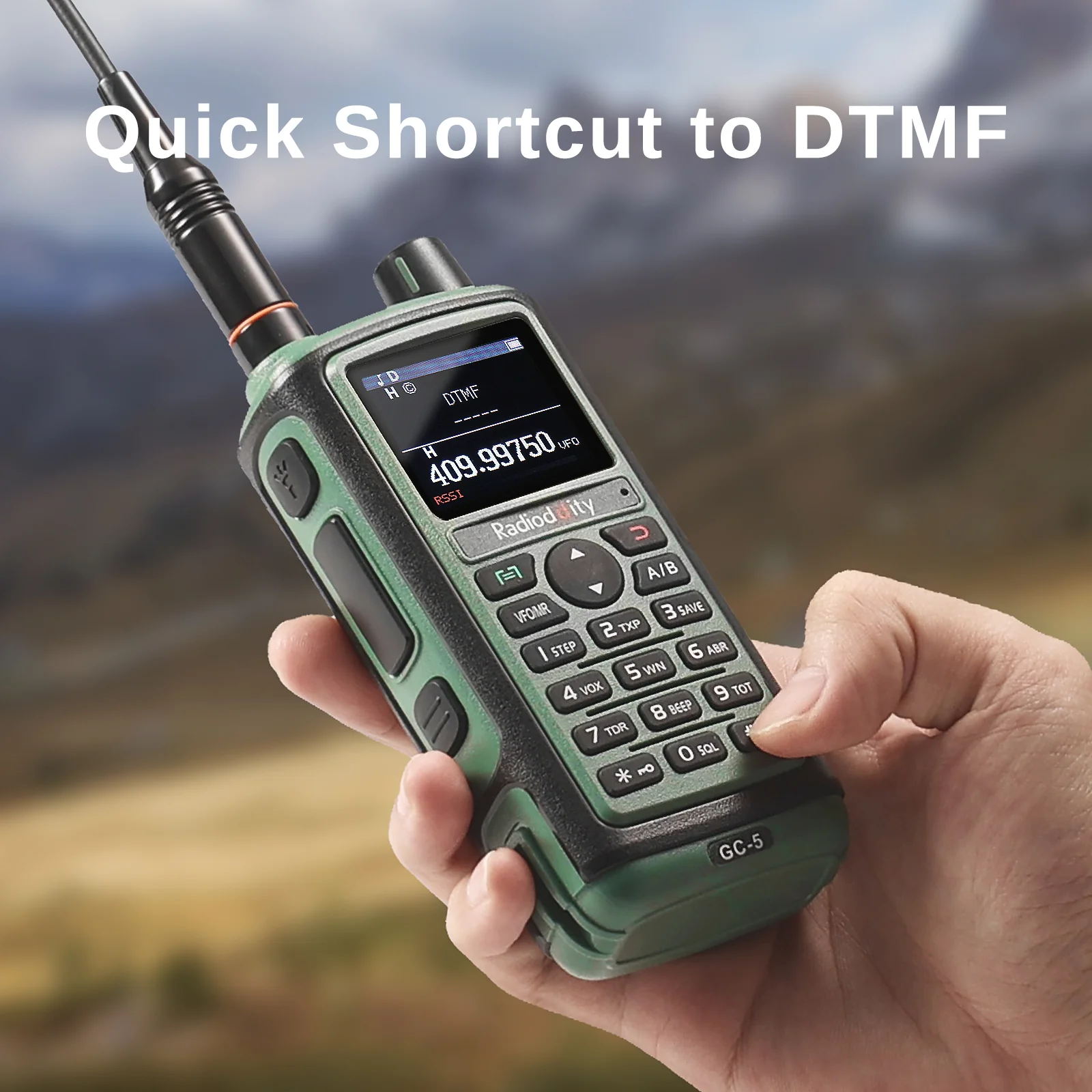

Radioddity GC-5 | Dual Band | 5W | 999 CH | Remote Frequency Copy | Color Screen | 1800mAh | NOAA FM RX
Experience the Radioddity GC-5 - the must-have amateur radio for outdoor enthusiasts, professionals, and emergency preparedness. Stay connected, informed, and safe with the Radioddity GC-5.
Now the Radioddity GC-5 also supports CHIRP programming. (select Baofeng UV-17Pro)
Effortless Wireless Frequency Copy
Streamline communication setup with the convenient wireless frequency copy function, allowing seamless frequency transfer between compatible devices (e.g., GC-5 copying GS-5B). By pressing and holding the 'exit' button, you can easily scan frequencies, and saving them is as simple as pressing the 'menu' button.
Enhanced Screen-on Time Control
Enjoy complete control over the screen-on duration with adjustable options ranging from 5 to 20 seconds, or keep it continuously active to suit your preferences and optimize power-saving requirements.
Dual Band, Dual Watch
The 1.8’’ large color display allows you to view channel names and frequencies at a glance. Dual-band and dual-watch function for monitoring two frequencies at once, offering convenience and situational awareness.
The GC-5 has the ability to load a Power-On picture. You can load your own to make a customized one. Click Here to learn more.
More Features
- VFO and channel mode
- Dual watch / Dual reception/ Dual-band handheld transceiver
- Frequency step, selectable between 2.5K | 5.0K | 6.25K | 10.0K | 12.5K | 20.0K | 25.0K | 50.0K
- Channel scan, frequency scan, and three scan and recovery methods: TO, CO, and SE
- Power-on password management
- Power-on information management (voltage, message, image, model name)
- DTMF encoder
- VOX
- Alarm function
- High-low power
- Programmable repeater offset
- Transmission time-out timer
- LED flashlight
- End of transmission tone, aka “Roger Beep”
- NOAA weather reception
- Broadcast FM radio receiver 78-108 MHz
- Battery save function
- Busy channel lock out
- Ten levels of Squelch adjustment
- Screen backlight time adjustment through keypad
- Voice prompt
- Keypad beep prompt
Specifications
Frequency Range:
US Version | 144-148MHz(TX&RX), 420-450MHz(TX&RX), FM: 78-108MHz(RX), WX: 161.650-163.275MHz(RX)
EU Version | 144-146MHz(TX&RX), 430-440MHz(TX&RX), FM: 78-108MHz(RX), NO WX in EU countries.
Power: 5W/2W
Channel Spacing: 25.0KHz(Wide)/12.5KHz (Narrow)
Memory Channel: 999 Groups
Operation Voltage: DC 7.4 V ±10%
Transmission Current: ≤1700mA
Receive Sensitivity: 0.25μV (12dB SINAD)
Rated Audio Power Output: 1W @16 ohms
Receive Current: ≤380mA
Programming Port: 2 pin Kenwood jack
Antenna Impedance: 50 Ohm
Screen Display Icon
Weather Channel Information
DTMF Information
Charger Tips
What’s in the box?
1 x GC-5 Two way radio
1 x Li-ion Battery (with one screw)
1 x Belt Clip
1 x Lanyard
1 x Headset
1 x Desktop Charger
1 x User Manual
(The remote frequency copy methods differ between various models)
